Vibra Screw’s Heavy Duty Metering Conveyors provide reliable and economical feeding of materials that do not require a vibrating design.
When combined with vibratory pre-feed equipment such as Bin Activators or Vibrated Bins, the Metering Conveyor will deliver accuracies of plus or minus 2%. Rates up to 9800 cubic feet per hour are available.

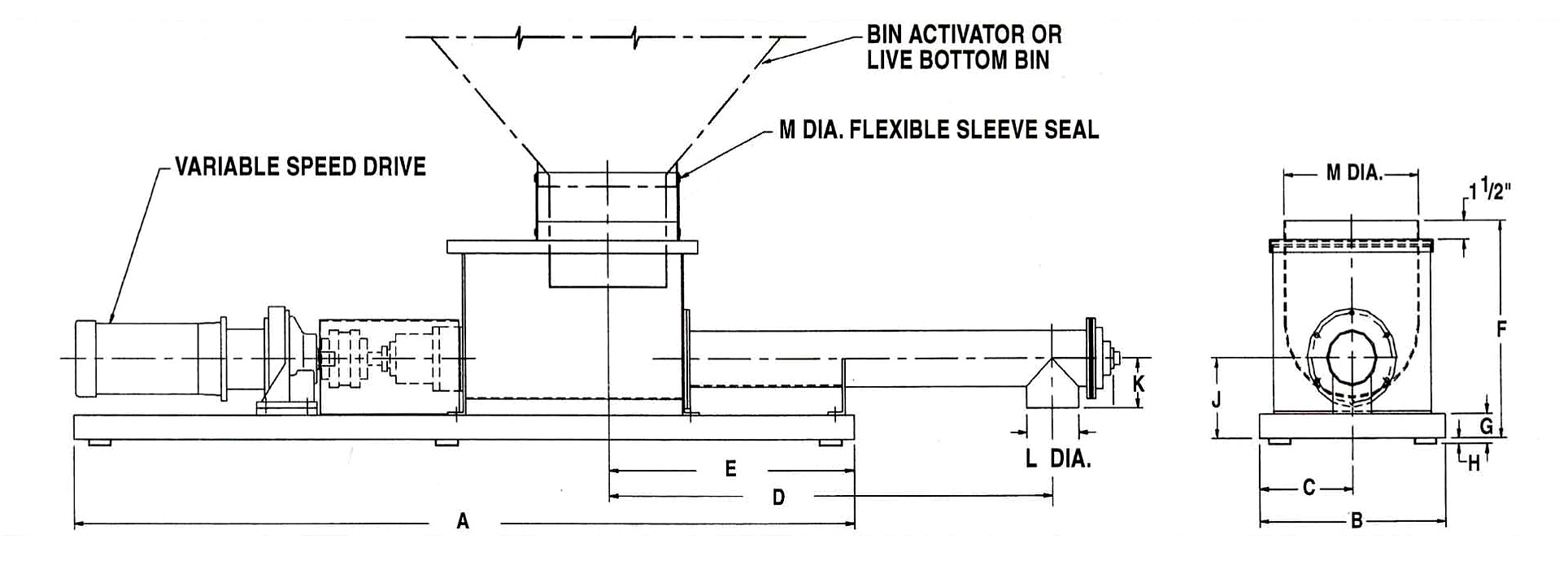

| SPECIFICATIONS |
 Click to View Larger |
| (mm) |
|
| Size |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
N |
Max HP |
CU FT (CU M) Hr. |
| 4 (102) |
61 (1549) |
16 1/2 (419) |
8 1/4 (210) |
26 (660) |
17 (432) |
17 7/8 (454) |
2 3/8 (60) |
3/8 (10) |
7 (178) |
4 (102) |
4 1/2 (114) |
12 (305) |
5 1/8 (130) |
3/4 |
200 (516) |
| 6 (152) |
68 (1727) |
18 1/2 (470) |
9 1/4 (235) |
34 (864) |
24 (610) |
18 1/8 (460) |
3 3/8 (86) |
3/8 (10) |
8 3/8 (213) |
5 3/8 (137) |
7 (178) |
14 (356) |
6 3/8 (162) |
1 |
600 (16.8) |
| 8 (203) |
90 (2286) |
18 1/2 (470) |
9 1/4 (235) |
43 (1092) |
32 (813) |
21 (533) |
4 (102) |
1 (25) |
9 3/4 (248) |
6 5/8 (168) |
9 (229) |
14 (356) |
7 3/8 (187) |
1 1/2 |
1200 (33.6) |
| 10 (254) |
103 (2616) |
20 1/2 (521) |
10 1/4 (260) |
54 (1372) |
42 (1067) |
25 1/4 (641) |
4 (102) |
1 (25) |
11 (279) |
8 3/8 (213) |
11 (279) |
16 (406) |
8 3/4 (222) |
2 |
2400 (67.2) |
| 12 (305) |
110 (2794) |
22 1/2 (572) |
11 1/4 (286) |
66 (1676) |
50 (1270) |
25 5/8 (651) |
4 (102) |
1 (25) |
12 (305) |
9 (229) |
13 (330) |
18 (457) |
9 7/8 (251) |
2 |
4140 (115.9) |
| 14 (356) |
110 (2794) |
26 1/2 (673) |
13 1/4 (337) |
72 (1829) |
46 (1168) |
26 5/8 (676) |
4 (102) |
1 (25) |
13 (330) |
10 (254) |
15 (381) |
22 (559) |
11 1/4 (286) |
3 |
6560 (183.6) |
| 16 (406) |
118 (2997) |
30 1/2 (775) |
15 1/4 (387) |
84 (2134) |
48 (1219) |
27 5/8 (702) |
4 (102) |
1 (25) |
14 (356) |
11 (279) |
17 (432) |
26 (660) |
12 1/2 (318) |
5 |
9800 (274.4) |
| |
|
