The Vibra Screw Versi Feeder is the first volumetric feeder with modular design, enabling a single unit to adapt to the broadest range of feeding applications. Offered in carbon or stainless steel the Versi Feeder not only offers versatility in design but extended life span. The Vibra Screw engineering department will initially recommend a specific configuration for your application. A careful analysis is made of your application derived from our database of more than 10,000 feeder tests and supplemented with additional testing in our laboratories if requested. Six screw sizes provide accurate feeding up to 600 cubic feet per hour.



HOW IT WORKS

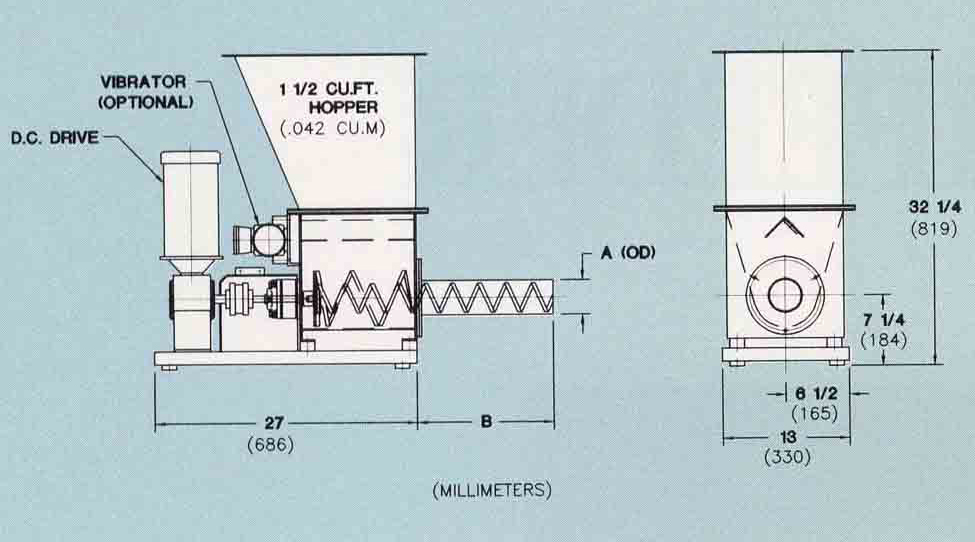

SPECIFICATIONS

Click to View Larger
Sizes: (Inches): 1, 11/2, 2, 3, 4, 6.
Sizes: (mm): 25.4, 38.1, 50.8, 76.2, 101.6, 152.4
Materials of Construction: Contact surfaces available in Carbon Steel, 304 Stainless Steel and 316 Stainless Steel. Non-Contact Carbon Steel surfaces sandblasted and painted.
Drive: Sizes 1, 11/2 and 2 Inches - DC-SCR controlled 1/2 HP, TENV motor enclosure, supply 115v, 1 phase, 60 Hz, NEMA 4/12 control enclosure. Sizes 3 and 4 Inches - DC-SCR controlled 3/4 HP, TENV motor enclosure, supply 230v, 1 phase, 60 Hz, NEMA 4/12 control enclosure. Size 6 Inches - DC-SCR controlled 1 HP, TENV motor enclosure, supply 230v, 1 phase, 60 Hz, NEMA 4/12 control enclosure. (AC Drives Available option).
Feed Tube and Screw: Straight, horizontal/end discharge. Down spout, vertical discharge with or without end bearing, optional. Wire scre or flighted screw.
Supply Hopper: Hoppers available as an extension of the feed trough, 1.5 ft3 (42.4 Liters) through 15 ft3 (424.7 Liters).
Optional Features & Equipment: -Vibrator on feed trough. -Conditioning screw in feed trough (4" conditioning screw for sizes 1" through 2" and 6" conditioning screw for sizes 3" through 4". -Hopper cover with inlet & vent.


SCHEMATICS      Find the schematic you wish to download and choose which format you prefer. PDF or DWG.
VersiFeeder Low Rate Screw Feeder
S130 1/4" - 3/4" Mini VersiFeeder w/ 1/4 cu.ft. hopper PDF DWG
S131 1/4" - 1" Mini VersiFeeder w/ 1/2 cu.ft. hopper PDF DWG
S112 1/4" - 1" Mini VersiFeeder w/ 1 cu.ft. hopper PDF DWG
16732A 1-2" VersiFeeder w/hopper or trough cover PDF DWG
16733A 3-4" VersiFeeder w/hopper or trough cover PDF DWG
16734A 6" VersiFeeder w/hopper or trough cover PDF DWG
18048 3" VersiFeeder w/ 3-25 cu.ft Live Bottom Bin PDF DWG
18047 4" VersiFeeder w/ 4-50 cu.ft Live Bottom Bin PDF DWG
18046 6" VersiFeeder w/ 6-200 cu.ft Live Bottom Bin PDF DWG
S129 VersiFeeder with large static hopper PDF DWG
S106 VersiFeeder large static hoppers 6-15 cu.ft. PDF DWG
S102 Positive shut off disc valve PDF DWG
S160 Single bag dump station PDF DWG
S105 Hinged VersiFeeder cover PDF DWG
S144 Shaft Seal PDF DWG
S111 Continuous Mixing Systems - Paper Bag Dump Station PDF DWG



EQUIPMENT TEST VIDEO


Pressure Modified Versi Feeder Test




Vibra Screw VERSI FEEDER Assembly Video




VERSI FEEDER Disassembly Video




Vibra Screw Versi Feeder / Live Bottom Bin Test
